A professional PA system requires four core components working in harmony: a subwoofer speaker for deep bass, a full-range stereo speaker for mid-high frequencies, a digital sound processor (DSP) for signal control and feedback elimination, and an audio mixer to manage all your inputs. Choosing the right products in each category determines whether your sound system delivers clean, powerful audio or a muddy, feedback-prone mess.
Building a PA system from scratch can feel overwhelming. There are dozens of product categories, hundreds of specifications, and no shortage of conflicting opinions online. But strip it all back, and a professional sound system comes down to four essentials: a subwoofer speaker for low-end punch, a stereo speaker for full-range coverage, a digital sound processor (DSP) to shape and protect your signal, and an audio mixer to control everything coming in.
Get these four components right, and your sound system will perform reliably at DJ gigs, live performances, corporate events, and fixed installation venues alike. This guide breaks down each component, explains what to look for, and highlights key products from LAIKESI Audio—a professional audio manufacturer based in Enping, Guangdong, China.
Before diving into specific products, it helps to understand the role each piece of gear plays.
A subwoofer speaker handles the lowest frequencies in your audio signal—typically between 35 Hz and 250 Hz. Without a dedicated subwoofer, your system will lack bass impact. Kick drums, bass lines, and low-frequency effects all depend on this component.
A stereo speaker (also called a full-range or main PA speaker) covers the mid and high frequencies that a subwoofer cannot reproduce. Together, a subwoofer and a stereo speaker pair form the foundation of any complete sound system.
A digital sound processor (DSP) sits between your mixer and your amplifiers. It shapes the audio signal through equalization, crossover filtering, limiting, and feedback elimination. A DSP protects your speakers and ensures every frequency is routed to the correct driver.
An audio mixer is your command center. It takes multiple input signals—microphones, instruments, playback devices—and blends them into a single stereo output. Most modern mixers also include onboard EQ, effects, and routing controls.
For high-output applications—clubs, festivals, large stages—an 18-inch subwoofer is the standard choice. The LAIKESI STX818S is a compact, front-loaded vented enclosure housing a single 18-inch ferrite magnet aluminum frame woofer. Key specs worth noting:
Power handling: 600W continuous
Frequency range: 35 Hz–250 Hz (–10 dB)
Frequency response: 40 Hz–120 Hz (±3 dB)
Sensitivity: 96 dB (1W/1m)
Peak SPL: 132 dB
Nominal impedance: 8Ω
Enclosure: MDF/Plywood, 45 kg
The large port area reduces distortion at high output levels, while the 20 mm threaded pole socket allows a satellite speaker to be mounted on top—a practical feature for portable PA setups where vertical stacking is required.

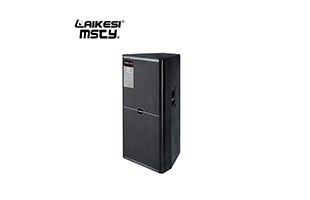

The LAIKESI SRX725 is a dual 15-inch, two-way loudspeaker designed for live performances, permanent installations, and stage monitoring. It pairs dual 15-inch LF drivers (75mm voice coil, aluminum frame) with a 4-inch voice-coil neodymium compression driver for high frequencies.
A few standout features:
Coverage pattern: 75° x 50° nominal—well-suited for throwing sound across a wide stage or audience area
Frequency range: 37 Hz–20 kHz (–10 dB)
Bi-amplified or full-range passive operation—giving you flexibility depending on your amplifier setup
Net weight: 45 kg (100 lbs)
The SRX725 supports power ratings from 550W up to 1000W depending on magnetism configuration, making it scalable for different venue sizes.
Many smaller setups skip the DSP and rely entirely on the mixer's EQ. That's a mistake. A DSP performs functions that a mixer simply cannot, including precision crossover filtering, speaker limiting, and automatic feedback elimination.
The LAIKESI PA+ Stereo Feedback Elimination processor is a full-featured digital sound processor built for professional PA applications. Its feature set goes well beyond basic EQ:
12 feedback notch filters for automatic feedback elimination
Dual 28-band graphic EQ
Stereo multi-band parametric EQ
120A Subharmonic Synthesizer for extending perceived bass response
Stereo limiters to protect speakers from over-driving
Auto-EQ with 28-band RTA for room correction
25 user programs / 25 factory programs
24-bit ADC/24-bit DAC with >110 dB dynamic range
2-channel XLR input, 2-channel XLR output, 2-channel XLR sub output
Front-panel RTA-Mic XLR input with phantom power
The automatic feedback elimination alone justifies adding this unit to any live sound rig. Feedback—the high-pitched squeal caused by a microphone picking up its own amplified signal—can damage speakers and ruin a performance in seconds. With 12 notch filters working in real time, the PA+ suppresses problem frequencies before they escalate.
The LAIKESI EFX8 is an 8-channel professional digital audio mixer built for live performance and studio recording. Based on the EFX series specification, it includes:
12+2 channel frame size
Built-in 24-bit Lexicon digital effects processor with 32 effects settings
Tap tempo and effects store function
3-band EQ with swept mid on mono inputs; 3-band EQ on stereo inputs
XLR and 1/4" metal jack connectors
RCA phono stereo playback inputs and record outputs
TRS insert sockets on all mono inputs
10-segment LED output metering
Headphone output
Rack-mountable design
The built-in Lexicon effects engine sets this mixer apart from budget alternatives. Lexicon is a respected name in professional reverb and delay processing, and having 32 programmable effects settings on board means you can dial in your sound without relying on external effects units.
The table below summarizes the four LAIKESI Audio products covered in this guide:
Product | Category | Key Spec | Best For |
|---|---|---|---|
STX818S | 18" Subwoofer Speaker | 600W, 132 dB SPL Peak, 35–250 Hz | DJ rigs, clubs, large outdoor stages |
SRX725 | Dual 15" Stereo Speaker | 550W–1000W, 37 Hz–20 kHz, 75°x50° coverage | Live shows, fixed installs, stage monitors |
PA+ DSP | Digital Sound Processor | 12 feedback filters, 28-band EQ, 24-bit ADC/DAC | Any PA system requiring signal control |
EFX8 | Audio Mixer | 8 channels, 24-bit Lexicon FX, 3-band EQ | Live performance, studio, recording |
A complete signal chain using these products looks like this:
Audio sources (microphones, instruments, playback devices) feed into the EFX8 audio mixer
The mixer's stereo output feeds into the PA+ DSP, which applies EQ, crossover filtering, limiting, and feedback suppression
The DSP's main outputs feed amplifiers connected to the SRX725 stereo speakers
The DSP's sub output feeds an amplifier connected to the STX818S subwoofer
This routing gives you precise control over every frequency band, protects all speaker drivers with dedicated limiters, and eliminates the risk of feedback during live microphone use.
Starting with quality components and connecting them correctly will save you time, money, and headaches down the line. Cheap gear tends to fail at the worst possible moment—halfway through a live show or during a corporate event with no backup.
LAIKESI Audio manufactures professional-grade equipment across all four categories covered in this guide. Explore the full product range at lksaudio.com, or contact the LAIKESI team directly at selina@mstyaudio.com to discuss your specific requirements. For large orders or custom configurations, direct inquiry through their website ensures you get accurate pricing and availability information.
A subwoofer speaker is designed to reproduce only low frequencies, typically between 35 Hz and 250 Hz. A full-range stereo speaker covers the full audible spectrum from around 40 Hz to 20 kHz. For professional PA systems, pairing a dedicated subwoofer with a full-range speaker delivers better bass extension and cleaner high-frequency reproduction than a single full-range speaker alone.
A mixer's EQ is useful for shaping the tonal balance of individual channels. A digital sound processor (DSP) performs functions that a mixer cannot: automatic feedback elimination, precision crossover filtering that routes frequencies to the correct speaker drivers, and hardware limiting that protects speakers from damage. For any professional or semi-professional PA setup, a DSP is a worthwhile addition.
The number of channels depends on your input count. A vocalist with a backing track might need just 2–4 channels. A full band with multiple microphones, instruments, and monitor sends may require 16 or more. The LAIKESI EFX8 provides 8 channels—suitable for small to mid-sized live setups, small venues, and studio recording sessions.
Feedback occurs when a microphone picks up the amplified output of speakers and creates a self-reinforcing loop—the familiar high-pitched squeal heard in live sound environments. A DSP with feedback elimination, like the LAIKESI PA+, uses notch filters to automatically detect and suppress the specific frequencies causing feedback in real time, without manually adjusting the EQ.
