Massive toroidal transformer and stroage capacitors
Peavey patented Turbo-Vcooling system with 2-speed demand-sensitive fan
Built-in 150Hz/18 dB/ oct subwoofer crosover with TRS output
DDT soft limiter protects amp and speakers
14 gauge steel chassis
Rear rack supprots
Mil spec fiberglass circuit boards
Current in-rush limiter
Overheat, short circuit, clip limiting, DC, and faulty load protection
Detent gain controls
Neutrik Speakon and 5- way binding post outputs

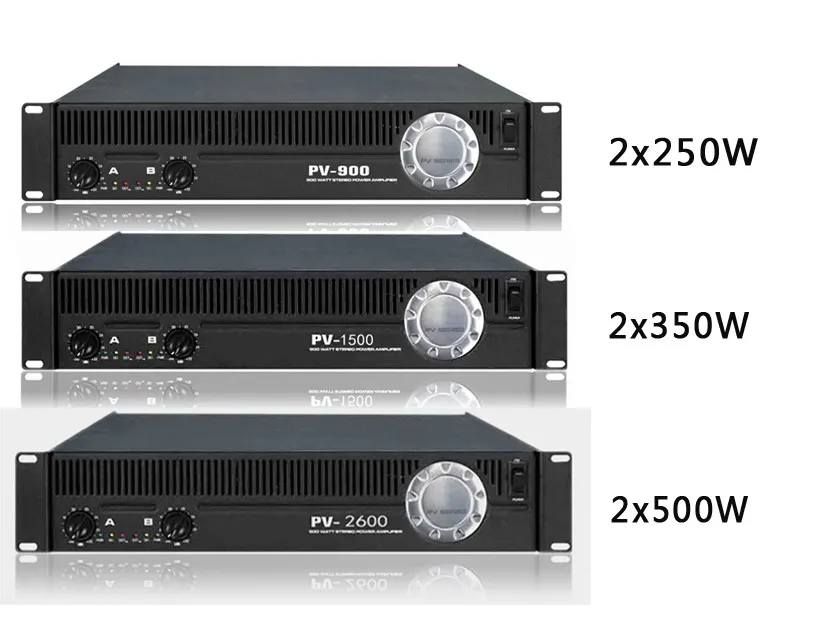

| Model | PV2600 |
| Distortion | <0.01% |
| SNR | 105dB |
| Damping | >250@8Ω |
| Input Sensitivity | 1V (0dB) |
| Frequency Response | 20Hz-20KHz, +/-0.15dB |
| Input impedance | 10Ω unbalance, 20KΩbalance |
| Connectors | Input: XLR, TRS (1/4”) Output: binding post and Neutrik Speakon |
| Indicator | Signal indicator, protection indicator, overheating and overload protection |
| Cooling | 2 level variable speed fan |
| Amp protection mode | DC, short circuit, shut off, overheating |
| Dimensions | 429x 483x 88mm |
| Weight | 21Kg |
| 2Ω | 1000w x 2 |
| 4Ω | 850w x 2 |
| 8Ω | 500w x 2 |
...
